Color Codes of The Trade Journal
The Tabs on the Journal are Color Coded for Easy Understanding of the Trade
Primary Tab Color Coding (see below for expiration tab coding)
Note: Orders are automatically updated when you check order status. Just make sure to select the time frame to cover the trades that need updating
Light Blue
Active Live Order
This indicates that you have a current live order
Dark Blue
Trade – Open
This indicates the opening transaction of a trade
Gray
Expired or Canceled Order
This can be from an order that you canceled, or a day order that did not get filled
Green
Closed Trade – Profit
This indicates a trade that you closed for a profit
Red
Closed Trade – Loss
This indicates a trade that you closed for a loss
Yellow
Closed Trade – Unmatched – Requires action to match to related
trade. Expand tab to see detail of trade.
Unmatched Trades can happen if there are multiple trades and an entry trade needs to be identified or because a multi-leg trade was split on exit, or change of stock position when an option expired (exercise/assignment)

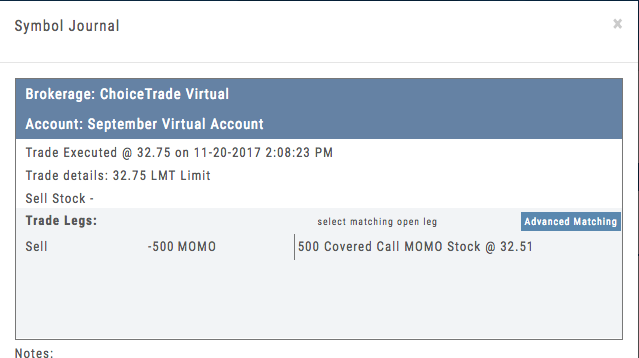

This is easily matched by clicking the edit icon (pencil) and selected which open order to match to. In some cases there may only be one, and it is simply a verification.
Expiration Tab/Tagging Colors
Red or Green with No Color Tagging
This indicates the option trade expired Out of the Money (OTM)
There were no options exercised or assigned through expiration
Red or Green with Dark Green Color Tag
This indicates that there were ITM options exercised/assigned
However, there was no change in stock ownership. Example: Bull Call where both legs were exercised/assigned.
Red or Green with Yellow Color Tag
This indicates a change in stock ownership through exercise/assignment
This will happen with single leg options trade or where one leg of a spread was ITM at expiration
It is important to reconcile expired trades to properly display profit. If there are unreconciled expired options, the reconciliation window will automatically display when you go to the options tab.
